Applications:
Area: Outdoor
Purpose: Solar lighting

Features:
– Integrated solar system
– Rugged die-cast aluminium housing
– High performance IP-free LED, top-tier suppliers
– High color rendering index, CRI 70 for 5200K and CRI 80 for 3000K/4000K
– High luminaire efficacy (95 lm/W for 5200K)
– Selectable optics, symmetric and asymmetric wide beam angles
– Optical-grade polycarbonate lens, weather-resistant
– Integrated DC driver, 12~24VDC
– IP65 ingress protection rating
– Hazard-free materials
– Long operation life, 40,000 hours @Ta=25°C
– Safety certification: CE

 MF

5

1M

D

1

B

Flood Light

Color/CCT

Beam angle

Input Voltage

Modules Qty

Install Mechanism

5: 5200K

4: 4000K

3: 3000K

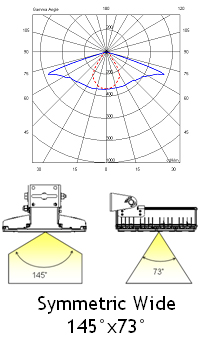

1M:Symmetric Wide Flood,145°x73°

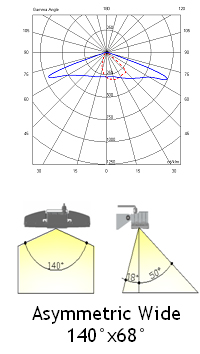

2M:Asymmetric Wide Flood, 140°x68°

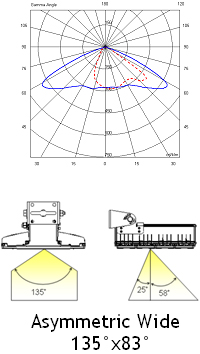

2S:Asymmetric Wide Flood, 135°x83°

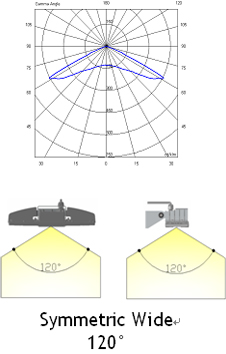

5S:Symmetric Wide Flood, 120°

U:12~24DC

1: 1 module

B: Yoke

Optics

1M

2M

2S

5S

Light

Distribution
