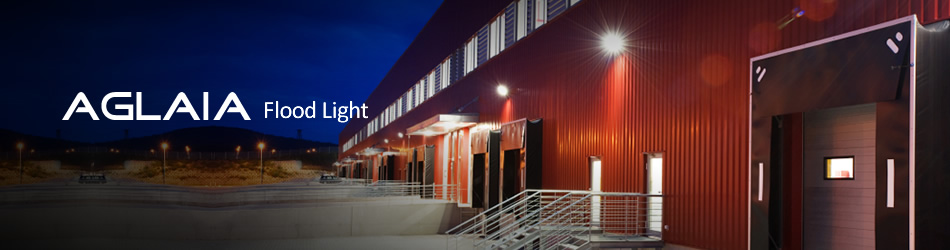

      AGLAIA Flood Light (18 AC narrow beam)

             Applications:

Area: Outdoor
Purpose: Projection lighting, flood lighting, billboard lighting, road sign lighting, architectural lighting, area lighting

Features:
– Rugged die-cast aluminium alloy housing
– Tempered glass, impact-resistant
– High performance IP-free LED, top-tier suppliers
– Selectable optics, 10°, 30°and 10°x30°
– High color rendering index, CRI 70 for 5200K and CRI 80 for 3000K/4000K
– High luminaire efficacy (83 lm/W for 5200K)
– Integral power supply of 100~240 VAC and 100~277 VAC input
– Built-in active PFC function (>0.9@220VAC)
– IP68(23W)/IP65(46W,90W,120W) ingress protection rating
– Hazard-free materials
– Long operation life, 40,000 hours@Ta=25°C
– Safety certification: CE

Available in 23W, 46W, 90W, 120W.



 MF

 5

 10

 A

 3

 B

Flood Light

Color/CCT

Beam angle

Input Voltage

Modules Qty

Install Mechanism

5: 5200K

4: 4000K

3: 3000K

10: 10degree

30: 30degree

M1: 10x30 degree

U:100~277VAC

1: 1 module

2: 2 module

3: 3 module

4: 4 module

B: Yoke



Optics

10°

30°

10° x 30°

Light

Distribution
